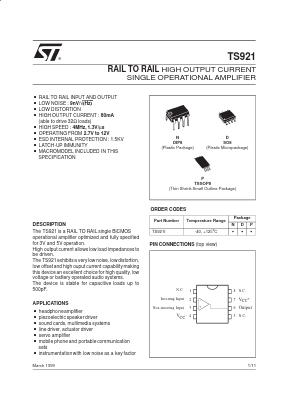

DESCRIPTION
The TS921 is a RAIL TO RAIL single BiCMOS operational amplifier optimized and fully specified for 3V and 5V operation.

■ RAIL TO RAIL INPUT AND OUTPUT
■ LOW NOISE : 9nV/√(Hz)
■ LOW DISTORTION
■ HIGH OUTPUT CURRENT : 80mA
    (able to drive 32Ω loads)
■ HIGH SPEED : 4MHz, 1.3V/µs
■ OPERATING FROM 2.7V to 12V
■ ESD INTERNAL PROTECTION : 1.5KV
■ LATCH-UP IMMUNITY
■ MACROMODEL INCLUDED IN THIS
    SPECIFICATION
